1. What Makes Your Trailer Tick?

An axle is like the backbone of your trailer. It’s the sturdy rod that connects and supports the wheels, ensuring they work together smoothly. Think of it as the bridge between your trailer and the road. The axle bears the weight of your trailer and whatever you’re hauling, distributing it evenly to the wheels. This not only keeps your trailer balanced but also makes towing more stable. Without a reliable axle, your trailer wouldn’t roll straight, and the ride would be bumpy. So, whether you’re hauling goods or enjoying a weekend getaway, a properly functioning axle is essential for a safe and comfortable journey.


2. What’s the Fuss About Size?

Knowing the size of the trailer axle is very important because it helps us to ensure that the vehicle is safe to drive. First of all, measuring the length of the axle can help us choose the right size trailer to avoid danger when traveling on the road. Secondly, figuring out how much weight the axle can handle ensures that the trailer will not be overloaded, preventing problems from occurring due to overloading. In addition, checking the wear and tear of the axle on a regular basis will also help us to identify and solve possible problems early, making our trip safer and more reliable. Measuring trailer axles is therefore a big deal – it keeps our trailers in good shape and makes for a smoother and safer ride.

3. What if Your Axle Breaks?

If your axle is broken, it’s a serious issue that can lead to dangerous driving conditions. First, stop immediately and ensure safety. Avoid driving or towing to prevent further damage. Next, contact professional towing services or vehicle repair experts. Do not attempt to fix it yourself, as it may require specialized equipment and knowledge. Most importantly, ensure the vehicle is not used until it is repaired to prevent further harm.

4. Measuring Trailer Axles: A Quick Guide

Measuring trailer axles is crucial for selecting the right components and maintaining trailer performance. Here are the key steps for measuring trailer axles:

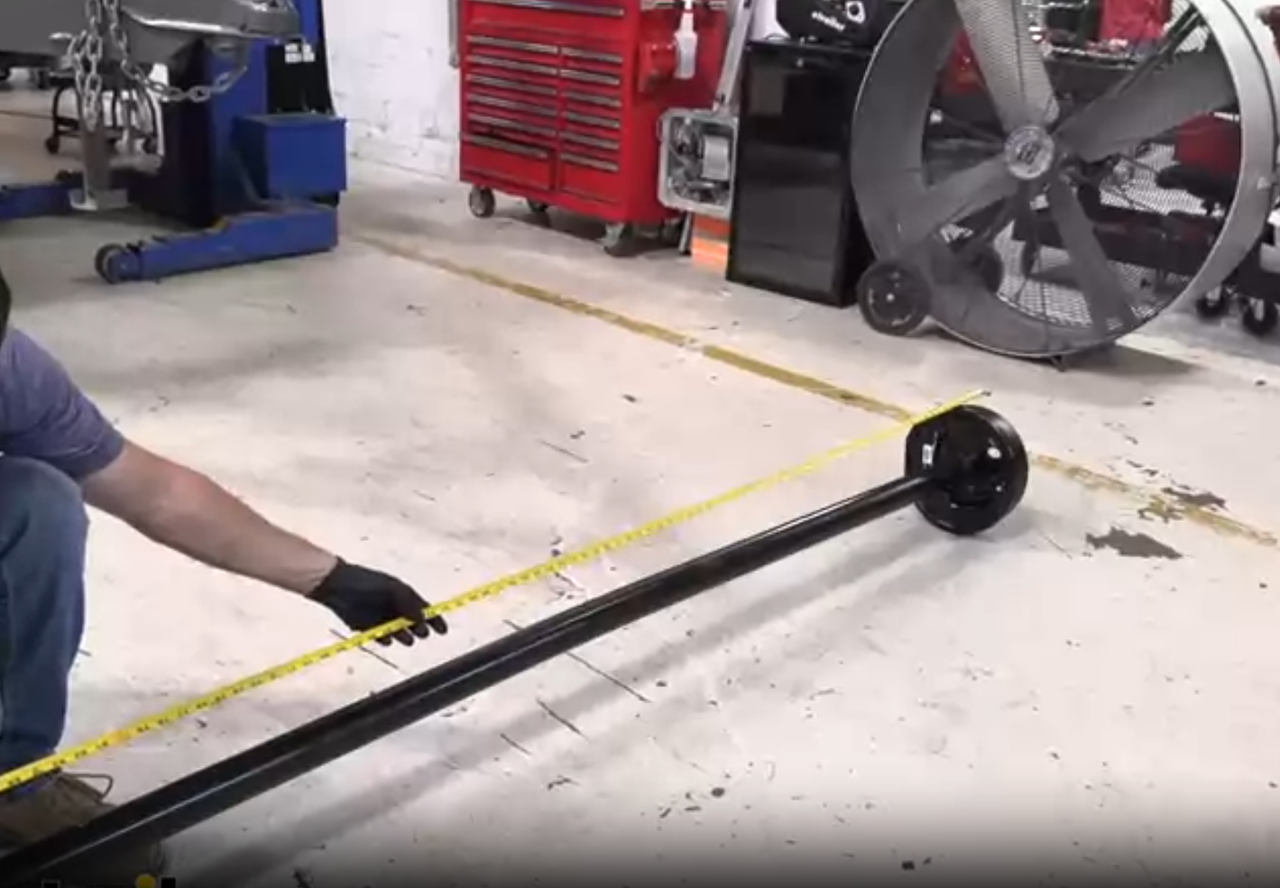

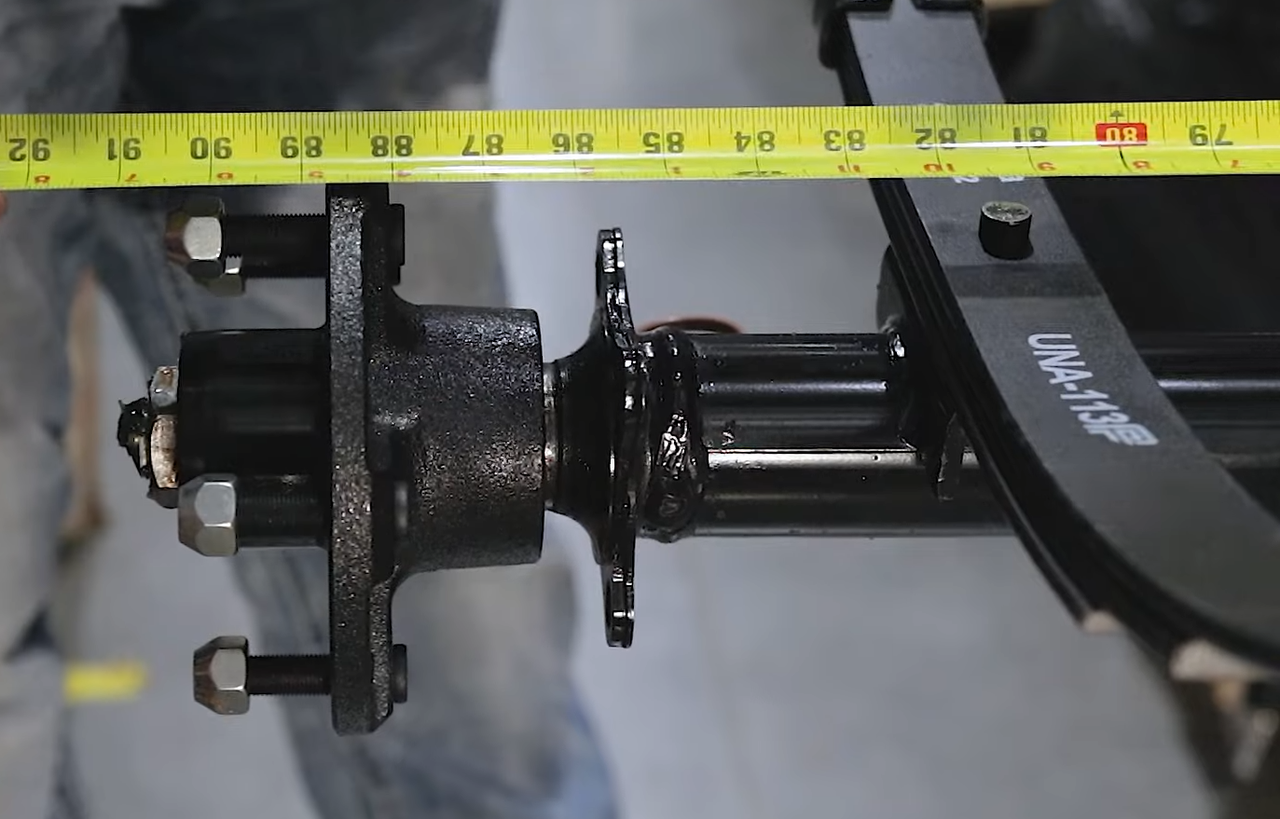

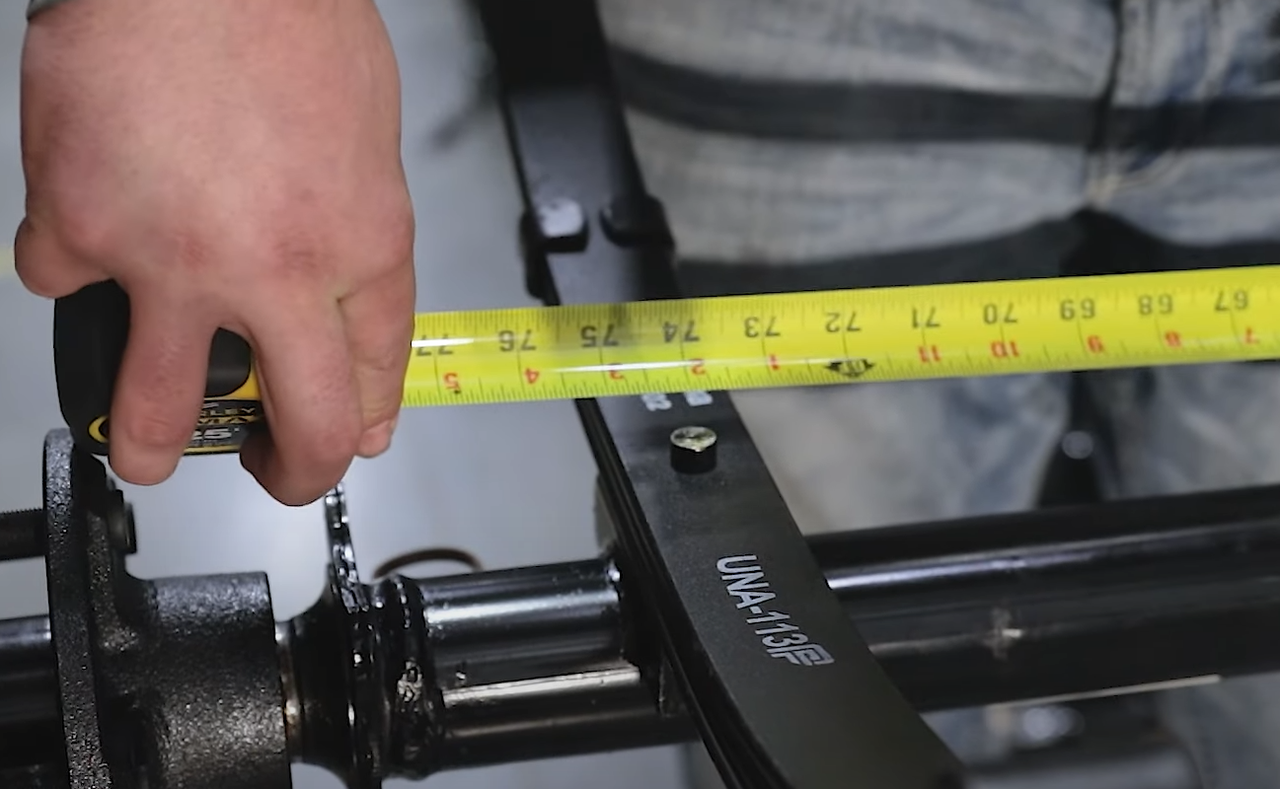

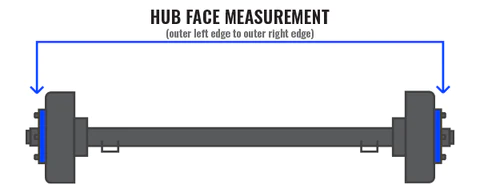

STEP 1: Measure the Hub Faces
Measure the distance from one hub face to another. Ensure you start from the center of the axle for accurate placement of the wheels.

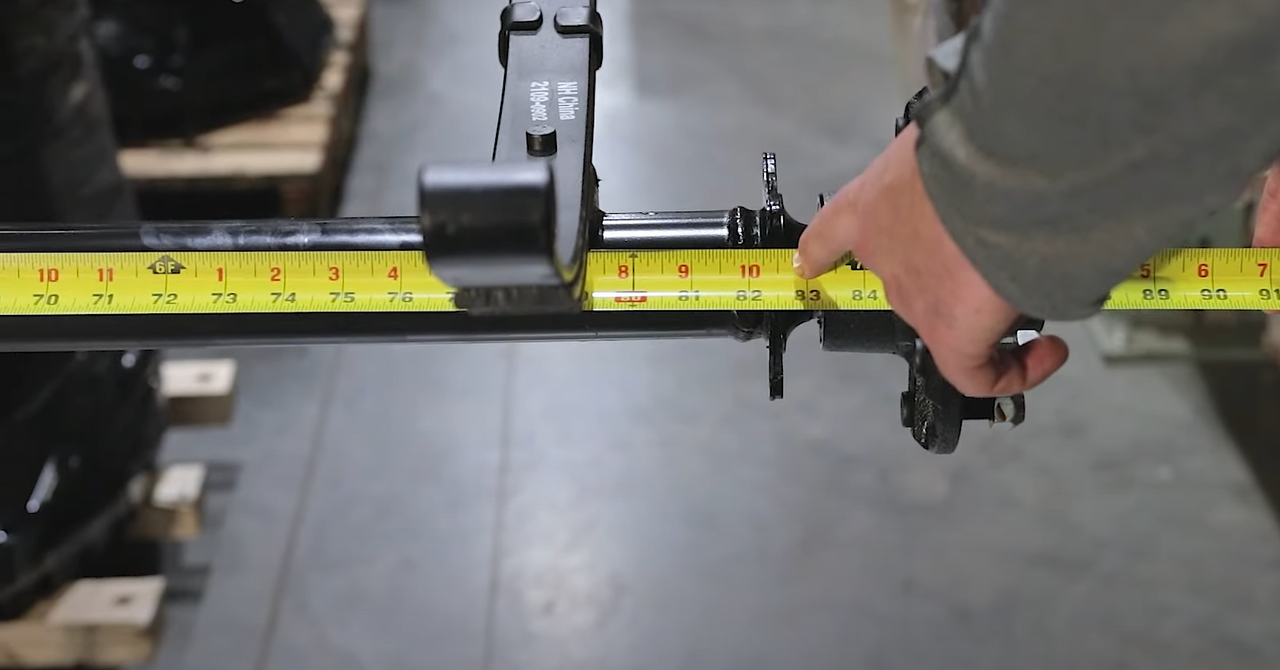

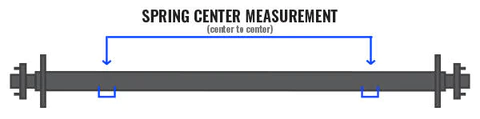

STEP 2: Measure Spring Centers for Proper Placement
To ensure trailer balance, measure the distance between spring centers. This ensures the wheels are in the correct position, preventing unstable towing.

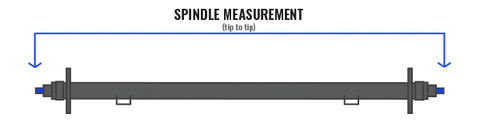

STEP 3:
Measure the spindles’ end-to-end distance, including from one end to another. This helps understand the total length of the axle for proper accessory selection.

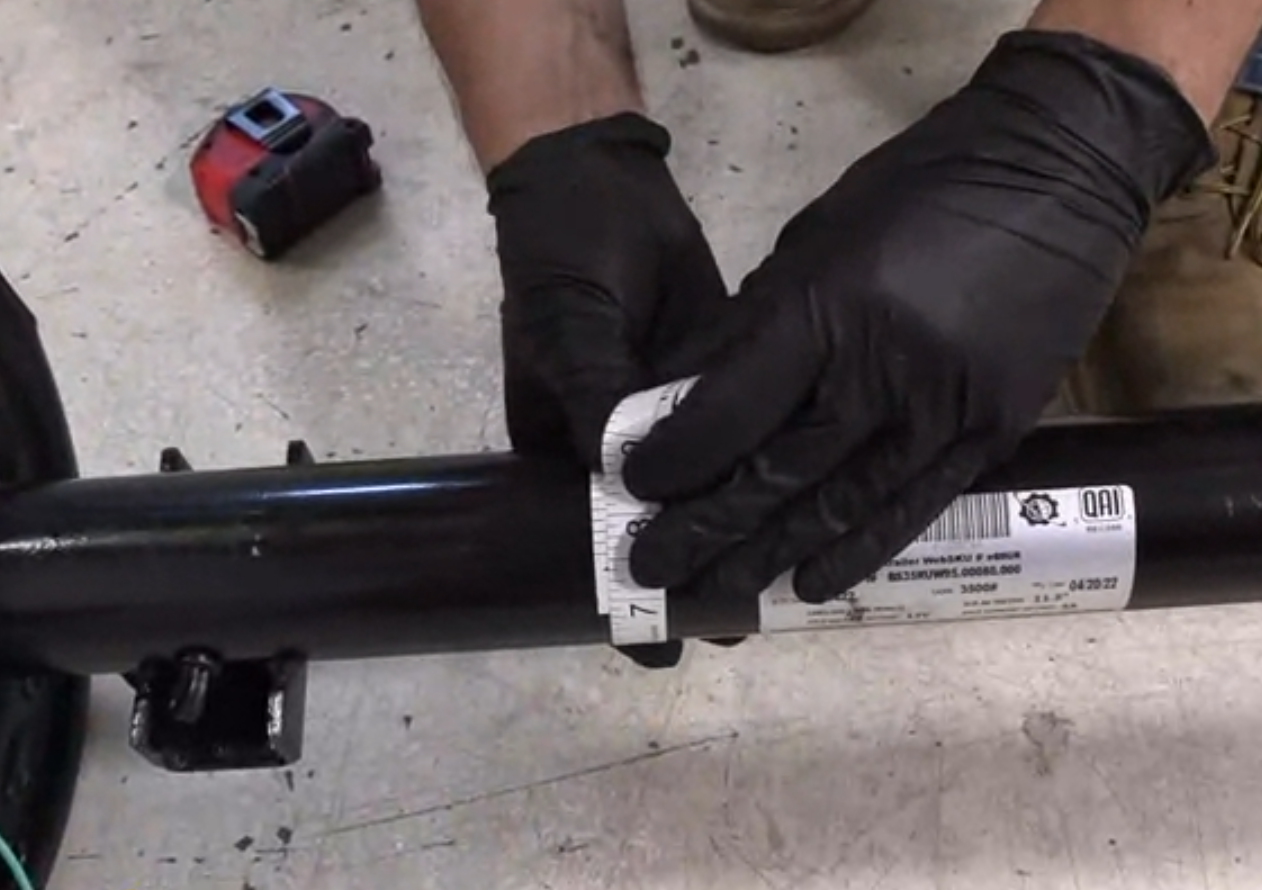

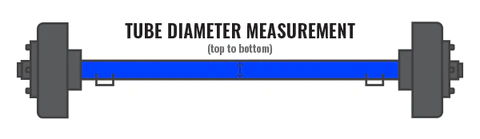

STEP 4: Measure Tube Diameter
Measure the diameter of the axle tube to ensure the selected replacement parts fit the axle. This is a crucial step for ensuring proper installation and stability.


Installing Your Trailer Axle

Properly mounting a trailer axle is crucial for safe and efficient towing. Let’s explore key aspects of the mounting process:
Camber: Ensuring Your Wheels Are Tilted Just Right
Camber refers to the vertical tilt of the wheels concerning the axle. This angle is intentional, designed to compensate for load-bearing and ensure even tire wear. Measure camber by checking the tilt of the wheel concerning a true vertical line. Adequate camber promotes stable towing and extends the tire lifespan.

Spring Mounting: Balancing the Load
The springs play a pivotal role in supporting the trailer’s weight and providing suspension. Proper spring mounting is essential for maintaining balance and stability. Ensure that the springs are securely connected to the axle and aligned correctly. Regular inspection and maintenance of spring components contribute to a smoother towing experience.

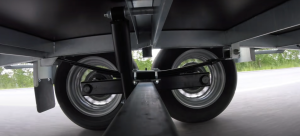

Different Ways to Mount Your Axle: Picking the Right Method
There are a few ways to mount your trailer axle, each serving its purpose:
Leaf Spring Suspension:
  How it Works: Common and sturdy, leaf spring suspension puts leaf springs on both sides of the axle.
  1.   Advantages: Gives strong support and handles heavy loads like a champ.
Torsion Axle Suspension:
  1.   How it Works: Torsion axles use a rubberized suspension system for a smoother ride.
  1.   Advantages: Low maintenance, better shock absorption, and more durability.
Independent Suspension:
  1.   How it Works: Each wheel has its own suspension system, allowing for independent movement.
  1.   Advantages: Offers a comfy ride and better handling, especially on bumpy roads.

6. Other Important Axle Tips

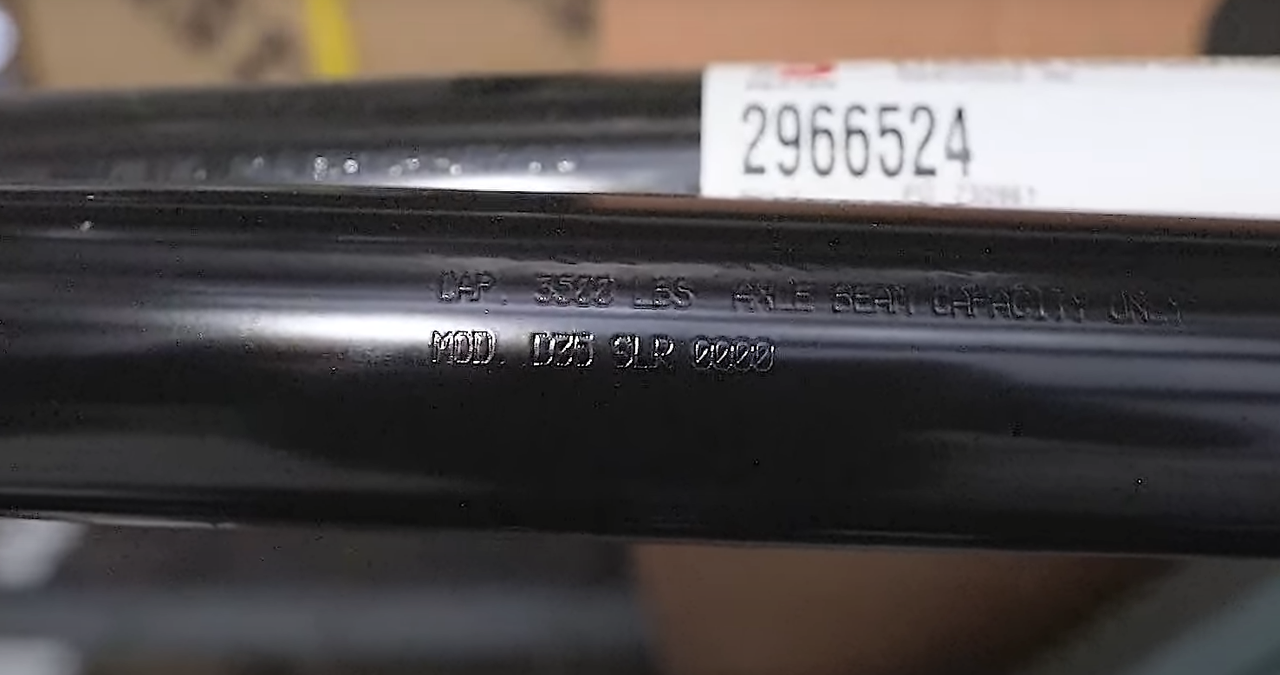

  • Identifying Axle Features ：
Identifying axle features goes beyond measurements. Look for serial numbers, stamped codes, or axle tags. These details contain crucial information about axle capacity, manufacturing date, and specifications. Checking these features helps ensure accurate replacements and proper maintenance.
  • Measuring Without Axle Hubs:
If your hubs are missing, don’t worry. Measure the distance between the spindle ends, figure out the axle diameter, and note the mounting type. These measurements guide you to the right hub replacements, making sure everything fits just right.

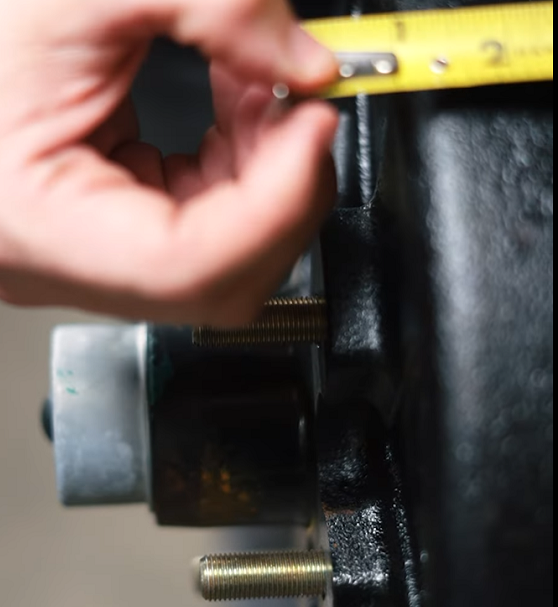

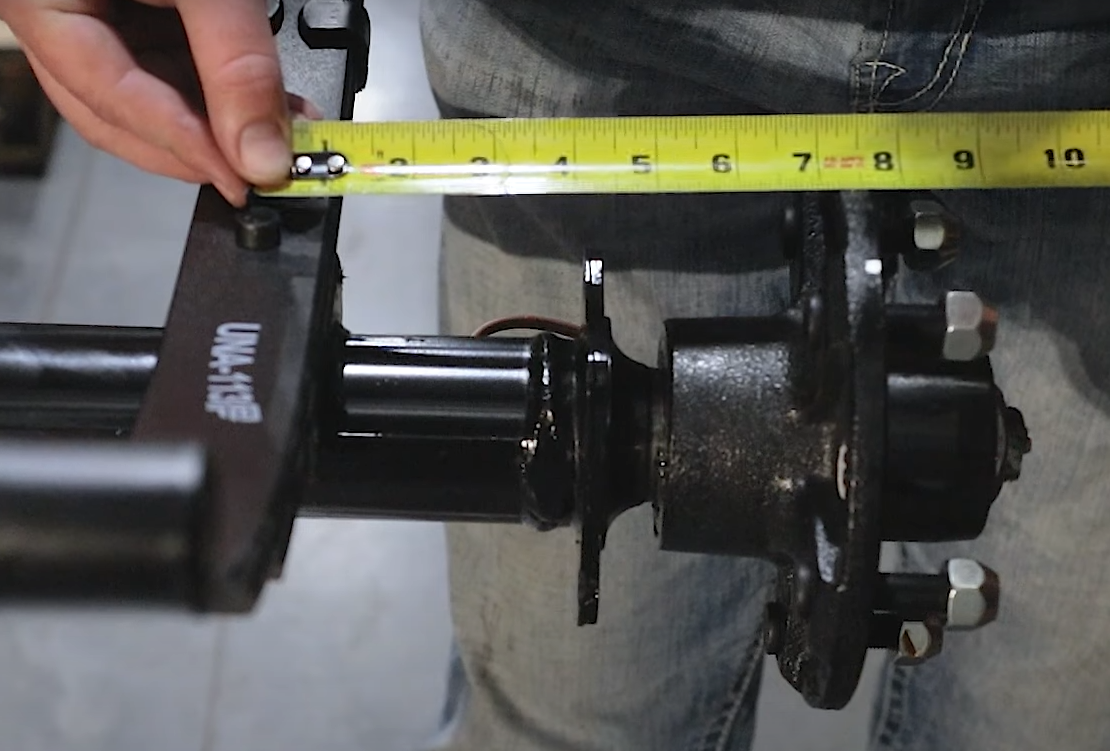

  • Making Room for a Hub:
To add space for a hub, measure the distance from the spindle end to where the hub will sit. This ensures proper clearance, allowing the hub to fit without interference. Accurate measurements guarantee a seamless installation and prevent issues with alignment or functionality.

7.Get Your New Axle at TowMax

In the market for a shiny new axle? Here’s a tip: more lugs (studs) mean more load capacity. Make sure you pick the right axle for your trailer. Get in touch with us for some expert guidance:
More Lugs (Studs) = More Load Capacity:
Boost your trailer’s strength by going for more lugs. It’s like giving your axle superhero powers, handling heavier loads with ease.
Contact Us:
  • Phone: +86-574-8786-2718
  • Email: sales@soaringtrailerparts.com
Order your top-notch axle from the Trailer Superstore today for towing that’s safe and dependable.

FAQ:

Q：How Do I Keep My Axle in Good Shape?
A：Regular maintenance is key. Grease bearings, inspect for wear, and check alignment. Avoid overloading to maintain optimal performance. When in doubt, consult a professional for expert advice.
Q：Where do I find my axle size?
A：Locate the axle size on the trailer’s identification plate or consult the owner’s manual. The information may also be stamped directly on the axle beam.
Q：What are the different axle lengths?
A：Axle lengths vary depending on the trailer type and how much it can carry. You’ll often see common lengths like 60, 72, and 96. Check your trailer’s info or talk to the manufacturer for the right length.
Q：What is the most common thru axle size?
A：The most common axle size for trailers is 3,500 pounds (3.5K). It’s widely used for utility, boats, and small to medium-sized trailers.
