Introduction

Building trailer axles is a critical aspect of trailer construction, influencing the overall performance, durability, and safety of the transportation system. Trailer axles bear the weight of the cargo, navigate diverse terrains, and endure varying road conditions. The process involves meticulous selection of materials, precise manufacturing techniques, and adherence to industry standards.

1. Material

What materials and methods are trailer axles made of?
Trailer axles, often unsung heroes beneath trailers, play a pivotal role in ensuring smooth transport. Materials and construction methods are crucial factors influencing durability, load capacity, and performance.

Materials Used:

Steel: High-quality steel alloys, including chromium, nickel, or molybdenum-containing medium carbon alloys, enhance load-bearing capacity. The original axle hardness depth typically ranges between 0.100-0.180 inches, ensuring optimal strength.
Aluminum: A growing shift towards aluminum brings weight reduction, enhancing fuel efficiency and payload capacity. Aluminum’s corrosion resistance extends the axle’s lifespan.

Manufacturing Methods:

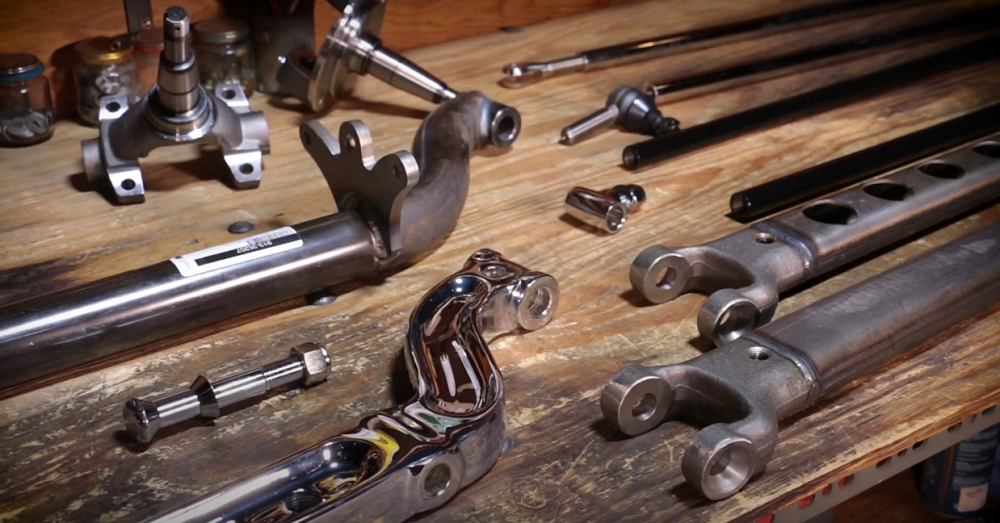

Hot Forging: Hot forging is a common method in trailer axle manufacturing. This process involves heating the steel to a malleable temperature and then shaping it using dies. The result is a solid and robust axle structure. Hot forging enhances the axle’s load-bearing capabilities and ensures uniformity in material properties.
Cold Forming: Cold forming, or cold rolling, is another technique, particularly with steel. This process involves deforming the metal at room temperature, creating a strong and shaped axle. Cold-formed axles are known for their high dimensional accuracy and smooth surface finish.

Standards and Regulations: Stringent adherence to industry standards and regulations ensures trailer axles’ safety and reliability. Organizations like the Society of SAE and NATM establish guidelines for axle design, material specifications, and performance standards.

Design Standards: Axle design adheres to specific standards outlined by the SAE. Commonly employed standards include SAE 1541, SAE 1050, SAE 1055, and SAE 1039.
Load Capacity Standards: Load capacity is an important aspect subject to standards. Axles are designed and manufactured to meet the requirements, and the manufacturer must specify the load rating.
Material Quality: Standards also dictate the quality of materials used in axle construction. Whether steel or aluminum, the alloys must meet specific strength and durability criteria.
Testing Procedures: Axles undergo rigorous testing procedures to verify their compliance with industry standards. This includes assessments of fatigue resistance, impact strength, and overall structural integrity.
3

2. Not Sure Which Kind of Trailer Kit You Need?

Trailer axle tube materials and axle building methods are crucial for a safe and efficient towing experience. Understanding key elements such as spindle steel selection, spindle dimensions, axle tube material, and axle setup methods is essential for optimal performance.
Spindle Steel Selection:  Choosing the right spindle steel is paramount. Options range from low-grade mild steel to higher-grade medium tensile steel like AISI 1045. While solid round and square spindles are common, high tensile steels may be less suitable due to limited flexibility. Ensure the quality of the spindle steel by opting for well-known grades like AISI 1045 for enhanced durability.
Spindle Dimensions:  The diameter/width of the rear spindle of a standard trailer usually ranges from 13/4″(3,500 pounds) to 21/4″(5,200 pounds) . Make sure the size you choose matches the specifications of your trailer for best performance.

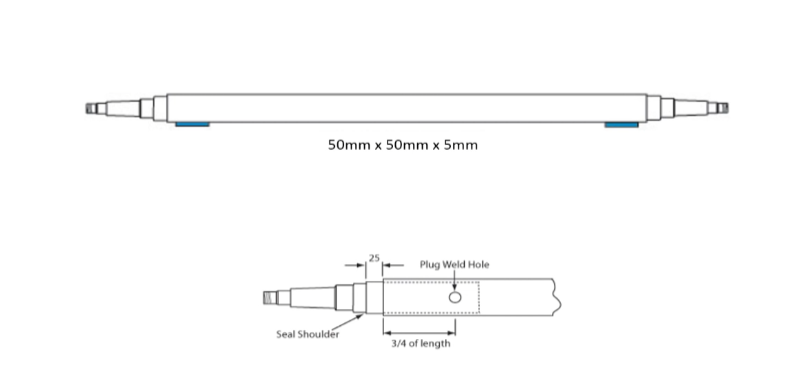

Axle Tube Material:  Selecting the right axle tube material is crucial for welding axles with strength and accuracy. For 1 3/4″ round axles, consider using 1 1/2″ Schedule 80 line pipe. Alternatively, heavy ERW pipe can be suitable. Square hollow sections (SHS) are commonly used for round stub axles.

Axle

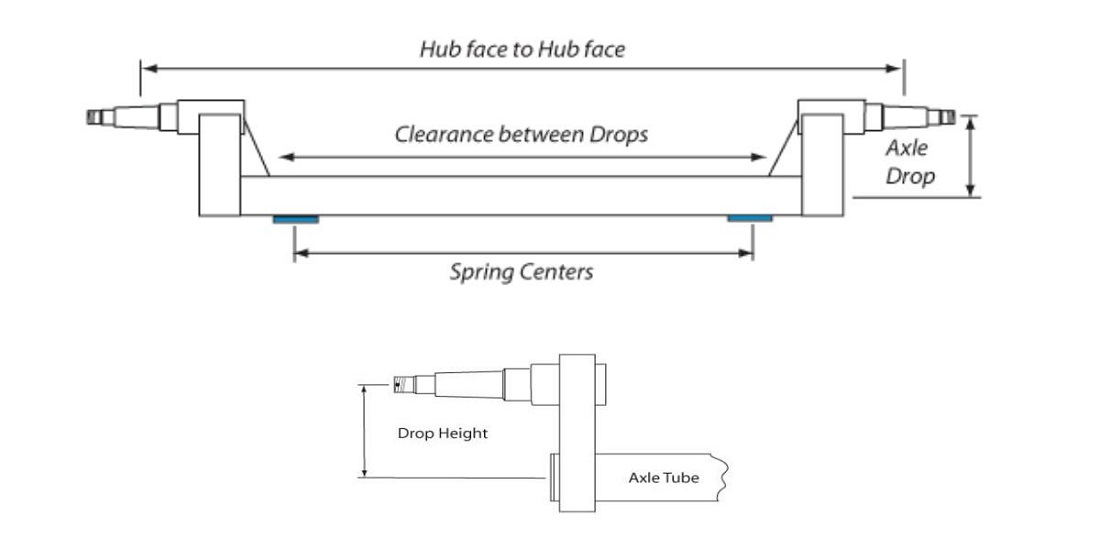

Overlay & Dropped Axles: For 3500 lb axles, a common choice for the axle tube is 2″ x 2″ x 1/4″ SHS. For heavier-duty axles, it’s recommended to use 2 1/2″ x 2 1/2″ x 1/4″ or heavier materials, sometimes employing 2″ x 3″ or larger RHS. Dropped axles can be crafted from heavy line/steam pipe.
5

Axle Setup Methods:  Various methods to ensure the accurate and true operation of the axle. The gasket method involves using a gasket around the spindle to concentrate it in the shaft tube. The welding and machining method includes stacking a spindle with a weld before machining to the correct size.

Overlay Axle Construction: Setting up a covering shaft is a relatively simple process. It involves using the same shaft tube length as the straight beam bridge. The short shaft is cut to fit the chassis width with the necessary clearance and can be DIY constructed.

3. Contact TOW with Questions About Axle Kits

For any queries or concerns about trailers and axle kits, don’t hesitate to reach out to TOW. They are your trusted source for reliable and expert advice on all things related to trailer parts. Contact TOW for personalized support and ensure your towing endeavors are smooth, safe, and worry-free.

4. Community Q&A

Q:Why are trailer axles curved?

A:Trailer axles are curved to help distribute weight more evenly and improve overall trailer performance. Provides better ground clearance and stability for a smooth ride over uneven terrain and improved maneuverability for safe towing.

Q:What type of metal bars and thickness are ideal for making a trailer?

A:For making a trailer, ideal metal bars include high-grade steel such as AISI 1045, with thickness ranging from 0.2 to 0.25 inches.

Q:Why would I use two axles for a light duty trailer?

A:Using two axles for a light-duty trailer enhances stability and weight distribution, reducing sway and improving overall control.

Q:At what ratio should I place the axles on a trailer?

The ideal axle placement ratio for a trailer is around 60:40, with 60% of the weight in the front and 40% in the rear, ensuring balanced weight distribution and stable towing.

Q:Can you put two different size axles on a trailer?

It is not recommended to put two different size axles on a trailer, as it may lead to uneven weight distribution, affecting stability and handling.

Conclusion

In short, the delicate manufacturing process of trailer axles is integral to ensuring the reliability and efficiency of trailers in a variety of transportation applications. From material selection to manufacturing precision, every aspect contributes to the overall performance and safety of a transportation system. Whether you are a manufacturer looking for a quality axle or an enthusiast aiming to optimize your trailer, understanding the intricacies of axle construction is essential. For further advice or assistance, feel free to contact our trailer parts distributors:
